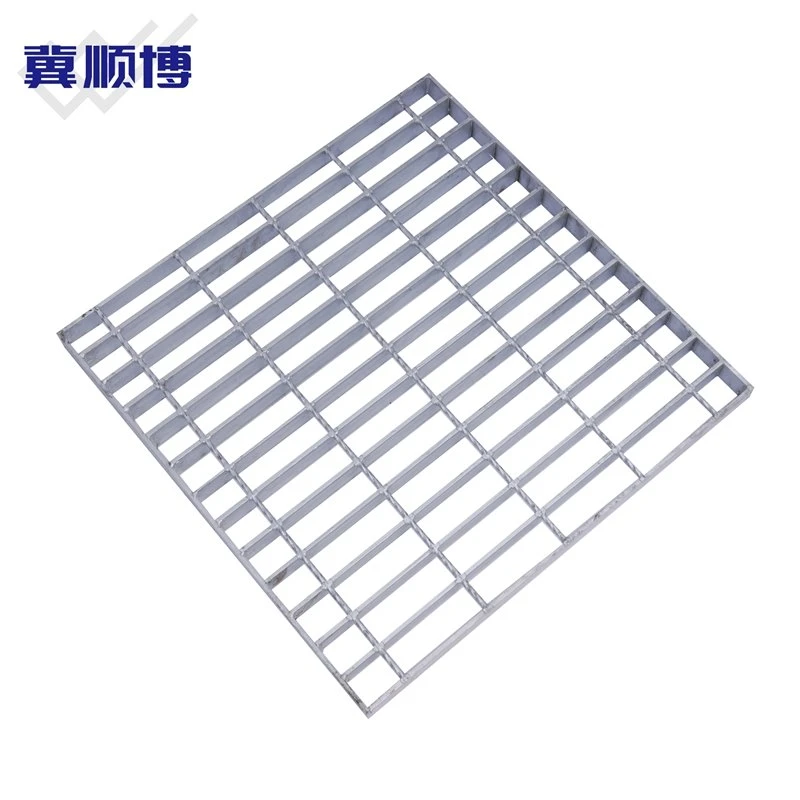

The galvanized safety grating provides an open walking deck above a supporting steel frame. Parallel bearing bars carry the load across the opening; transverse members keep them in position. Zinc treatment protects the fabricated steel surface. Water passes between the bars, which helps keep access areas free of standing wash water. Plain tops suit some routes, while serrated edges add texture where footing needs attention. Banded edges and planned cut-outs let the panel fit around nearby equipment. We match the bar arrangement to the support drawing, because the working span matters as much as the visible grid spacing.
Product Parameters
|
Item |
Provided specification |
|
Surface treatment |
Hot-dip galvanizing or electro-galvanizing |
|
Bearing-bar spacing |
30mm / 40mm / 60mm |
|
Cross-bar spacing |
50mm for the 60mm series |
|
Flat-bar range |
65-200mm wide; 5-20mm thick |
|
Galvanizing standard |
GB/T13912-2002 |
Main Applications
The galvanized safety grating serves wet plant platforms and maintenance routes.
01
Water-treatment areas can retain drainage beneath removable floor sections.
02
Stair and trench-cover installations use a specified walking surface and finished perimeter.
03
The same working area can contain rectangular panels and shaped pieces around equipment. Their access openings and edge details follow the platform layout.
04
Platforms beside pumps and tanks can combine working routes with separate maintenance openings. The support layout defines where each panel rests and where individual sections can be removed.
05
Why choose us
We prepare galvanized safety grating with dedicated grating equipment and drawing support at Hebei Shunbo. Automatic pressure-welding lines support repeat panels while technical staff review non-standard shapes and openings. The factory combines welding and fabrication resources so related safety-floor pieces can be organized within one order. Buyers can coordinate the panel schedule and delivery batches with the workshop responsible for the completed grid.
For an enquiry, a marked support sketch is useful: it shows where each panel actually bears and where an opening interrupts the bars.
FAQ
Q: Can serrated bearing bars be selected?
A: Yes. Serrated tops provide a different traction surface for wet areas.
Q: Can non-standard shapes be made?
A: Yes. Panel outlines and openings can follow project drawings.
Q: Does closer spacing alone establish the load rating?
A: No. Bar size, material and support span also determine capacity.
