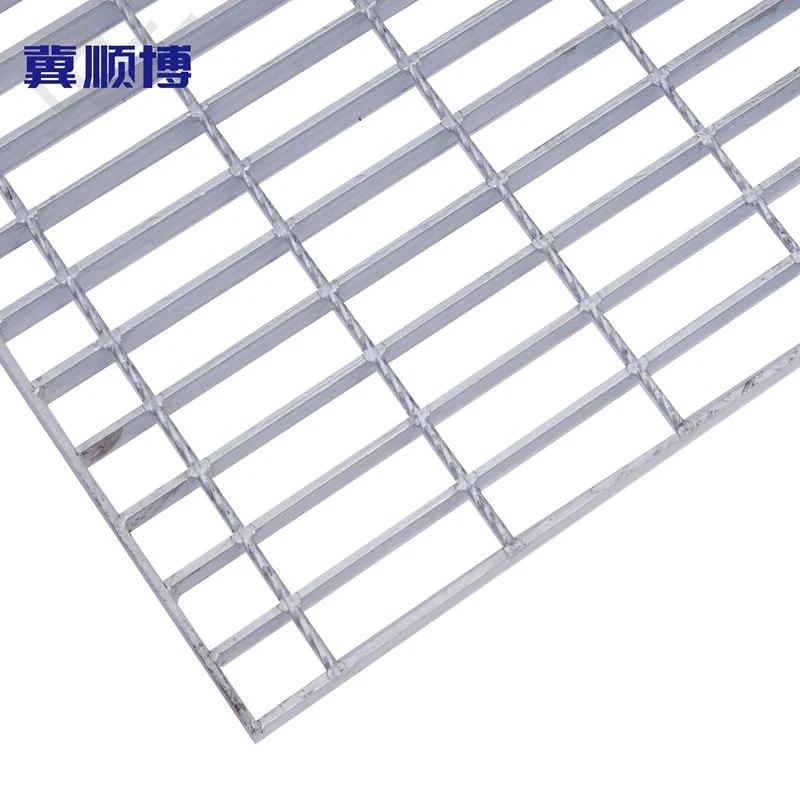

The galvanized catwalk grating makes a raised maintenance route through equipment areas. It spans between the walkway supports, leaving the space below open to air and water. Bearing bars provide the main load path, with cross bars holding the panel together. A band around the perimeter gives each section a finished edge. Toe plates can follow exposed boundaries, and selected access panels may include lifting handles or hinges. The zinc finish protects the carbon steel after fabrication. With panel divisions planned around the equipment, operators can reach inspection points without covering the entire service area with a solid floor.
Components
Bearing bars use hot-rolled flat steel or slit strip selected for the supported span.
Cross bars join the load-bearing members and keep the open grid coordinated.
Perimeter banding may use flat bar, angle, channel or square tube.
Toe plates, checker-plate guards, handles, hinges and fixings complete the specified walkway arrangement. These accessories follow the access drawing and the positions of the equipment.
Main Applications
The galvanized catwalk grating forms elevated paths around processing machinery.
Walkways above pipes can retain inspection access through removable sections.
Platforms around tanks can include toe plates matching the support layout.
Catwalk sections can follow a route that changes direction around equipment. Individual panel outlines and removable access pieces keep the walkway connected through those turns.
Why choose us
Our galvanized catwalk grating production is supported by a 20,000m² factory and four automatic pressure-welding lines. Hebei Shunbo reports 120 employees, including 10 technical staff. The workshop can combine repeated panels with non-standard access sections, giving buyers fabrication capacity and drawing support for a complete catwalk schedule, including the peripheral parts required for installation.
It helps to identify the fixed sections and the sections that need to open before the catwalk drawing is released for fabrication.
FAQ
Q: Can toe plates be included?
A: Yes. Their position can follow the walkway drawing.
Q: Can access sections have hinges or handles?
A: Yes. Opening and lifting details can be incorporated for maintenance.
Q: Can every bay use the same bar arrangement?
A: No. Changes in span or load may require a different panel selection.
