Product Overview



Industrial grating accessories are mechanical fastening components engineered to secure steel bar grating and FRP grating panels directly to structural steel supports. Standard configurations include saddle clips, G-clips, M-clips, retaining plates, and complete bolt assemblies.
These components are deployed across industrial walkways, maintenance platforms, drainage trench covers, and structural flooring systems where panels must be anchored securely. Utilizing mechanical fastening configurations eliminates the requirement for on-site field welding, preserving base beam anti-corrosion coatings and permitting rapid panel removal during scheduled facility maintenance.
Selecting appropriate grating accessories requires evaluating the grating profile, bearing bar geometry, structural support dimensions, installation clearance, environmental exposure conditions, and project load parameters.


  • Steel Grating Accessories
    Steel grating requires reliable fixing methods to ensure safety and stability under different working conditions. Steel Grating Accessories play an essential role in securing panels to support

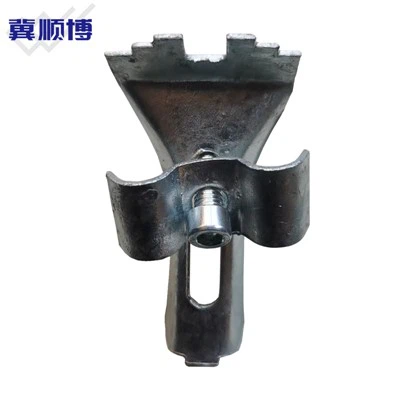

Steel Grating Accessories



Material & Structural Design

System performance depends on component metallurgy, fastener configuration, and mechanical geometry.


Component Types
Saddle Clips (Top Clamps): Formed to match the exact radius of bearing bars (e.g., 30mm, 40mm pitch), distributing clamping force evenly across the top surface to prevent bar rotation.
G-Clips & Hook Clips: Fastened via a mechanical hook arrangement that grips structural beam flanges without requiring drilling or welding.
M-Clips & Disk Hold-Down Clips: Engineered for molded or pultruded FRP grating installations to prevent panel uplift and displacement.
Retaining Plates & Anchor Blocks: Utilized in heavy-duty assemblies requiring positive mechanical interlock between grating panels and structural members.
Fasteners: Hex head bolts, socket cap screws, and threaded studs manufactured in accordance with ISO 4017 / DIN 933 standards.


Material & Finish Options
Material grades and protective finishes must be specified based on project service environments:
Carbon Steel: Q235B / ASTM A36 with Hot-Dip Galvanizing (HDG) per ISO 1461 / ASTM A153.
Stainless Steel: AISI 304 (EN 1.4301) or AISI 316 (EN 1.4401), passivated for enhanced corrosion resistance.
Aluminum: Available for specific lightweight or non-magnetic structural applications.



Types & Configuration Options



Part Number

Description / Type

Fits Grating Bar Height

Bolt Size

Standard Material

CAD Model Link

GAC-01

Type A Assembly (Top Saddle + Bottom Bent Plate + Bolt)

25mm - 50mm

M8 / M10

Hot-Dip Galvanized Carbon Steel

[Download .STEP]

GAC-02

Type B Assembly (Welded Anchor Block + Bolt)

30mm - 60mm

M10

316 Stainless Steel

[Download .STEP]

GAC-03

Type C Saddle Clip (Self-Locking Friction Clamp)

20mm - 40mm

M8

Hot-Dip Galvanized Q235B

[Download .STEP]

GAC-04

FRP Grating Panel Hold-Down Clip (M-Clip / Disk)

Fits 25mm / 38mm FRP

M8 / 5/16"

316SS / Hot-Dip Galvanized

[Download .STEP]





Key Features & Functional Benefits

Elimination of Field Welding: Fastens gratings mechanically to structural supports, bypassing hot-work permit requirements and preserving beam coatings.


Vibration Resistance: Integrated spring washers and serrated interface designs prevent fastener back-off under continuous heavy machinery vibration.


Targeted Corrosion Protection: Tailored material selection (HDG carbon steel or marine-grade 316 stainless steel) resists aggressive chemical exposure and salt fog.


Load Distribution: Conforms to NAAMM MBG 531 guidelines, withstanding concentrated loads without slippage when correctly torqued.


Maintenance Accessibility: Bolt-on assemblies allow rapid removal and re-installation of individual grating panels during plant turnarounds.

Steel Grating Accessories



Applications & Operating Conditions



Offshore Platforms & Marine Facilities

Topside walkways and drilling rigs exposed to high-salinity salt spray (ASTM B117 salt fog rating > 1000 hours for 316SS).

01

Chemical Processing Plants

Pipe racks and secondary containment areas subjected to acid, caustic, and chemical splashes.

02

Power Generation Facilities

Boiler houses and turbine decks subject to thermal expansion cycles and continuous mechanical vibration.

03

Water & Wastewater Treatment

Clarifier bridges and catwalks requiring reliable moisture and corrosion resistance.

04



Technical Specifications



Parameter

Specification Details

Compatible Grating Types

Steel bar grating, molded / pultruded FRP grating

Bearing Bar Dimensions

Height: 20mm - 60mm

Support Beam Compatibility

Standard I-beams, wide-flange beams, and channels (Flange thickness: 3mm - 25mm)

Material Grades

Q235B, ASTM A36, AISI 304, AISI 316

Surface Finishes

Hot-Dip Galvanized (HDG >= 85 um), Electro-Galvanized, Passivated

Standard Torque Ratings

M8 Fasteners: 18 - 22 N.m

M10 Fasteners: 35 - 40 N.m

Pull-Out Load Capacity

>= 3.5 kN per single assembly clip (tested per structural protocols)

Applicable Standards

NAAMM MBG 531, ISO 14122, ISO 1461, ISO 4017




Manufacturing & Quality Control


Production utilizes automated stamping presses, CNC cold-heading machinery, and strict process controls to ensure batch consistency:

01/

Dimensional Verification: Optical comparators and CMM equipment inspect clamp angles, slot widths, and thread pitch tolerances (+/- 0.1 mm).

02/

Coating Inspection: Magnetic induction gauges test galvanizing thickness on every production lot in accordance with ISO 2178.

03/

Mechanical Testing: Universal tensile machines verify proof load, yield strength, and shear resistance before packaging.

04/

Material Traceability: Heat numbers stamped on raw material coils link directly to EN 10204 3.1 mill test certificates supplied with shipments.



Customization & Project Requirements


We support complex engineering and structural customization projects:

Non-Standard Geometry

Customized saddle widths and extended J-bolts for structural beam flange thicknesses exceeding standard limits (up to 40mm).

Special Alloys

Fabrication using Duplex Stainless Steel (UNS S31803 / S32205) or Monel for extreme service environments.

Site-Sorted Kitting

Efficient and precise processing and testing equipment



FAQ



Q: How do I determine the correct clip size for my grating and steel beam?

A: Match the top saddle to your bearing bar height (e.g., 30mm or 40mm) and ensure the bottom J-clip or plate accommodates your structural beam flange thickness. Reviewing engineering structural drawings (such as W8x24 or HEB 200 dimensions) helps confirm clearance. You can also download our 3D CAD models to verify structural fit before ordering.

Q: Can these clips be installed without drilling or welding the steel structure?

A: Yes. All standard installation clips function as mechanical fasteners, clamping directly onto the structural flange and grating bar without requiring destructive drilling or hot-work welding permits.

Q: Should I choose Hot-Dip Galvanized carbon steel or 316 stainless steel clips?

A: Hot-Dip Galvanized carbon steel provides reliable corrosion protection for general industrial atmospheres. For splash zones, marine environments, or chemical plants with high chloride concentrations, 316 stainless steel is recommended to prevent pitting and crevice corrosion.

Q: What is the recommended installation torque?

A: For M8 fasteners, apply a torque of 18 - 22 N.m. For M10 fasteners, apply 35 - 40 N.m using a calibrated torque wrench to secure the assembly without stripping threads or over-stressing components.

Q: Do these accessories comply with recognized engineering standards?

A: Yes. Design parameters and performance characteristics align with NAAMM MBG 531 (Metal Bar Grating Manual) and ISO 14122 safety requirements for industrial access structures.

Q: What documentation is provided with bulk project shipments?

A: Each shipment includes EN 10204 3.1 material test certificates, galvanizing thickness inspection reports, and itemized packing lists cross-referenced to client BOM numbers.



modular-1
Request a Quote

To receive an accurate technical quotation, please provide the following details:
Grating specification (Bearing bar height, thickness, and clear span spacing)
Structural support profile (Beam type and flange thickness)
Required material grade (Hot-Dip Galvanized Steel or 316 Stainless Steel)
Estimated quantity and destination delivery terms (Incoterms 2020)
